Motion Capture System

The Motion Capture System Tech MCS is a fully wireless motion analysis solution based on one of the lighter and smaller inertial sensor of the market (Tech IMU), and it can be used in rehabilitation, biomedical research and sports. Its detailed design makes it a key tool for different application areas.

Motion Capture Software

Home » Technaid Product Range » Motion Capture Software

Tech-MCS Studio 4

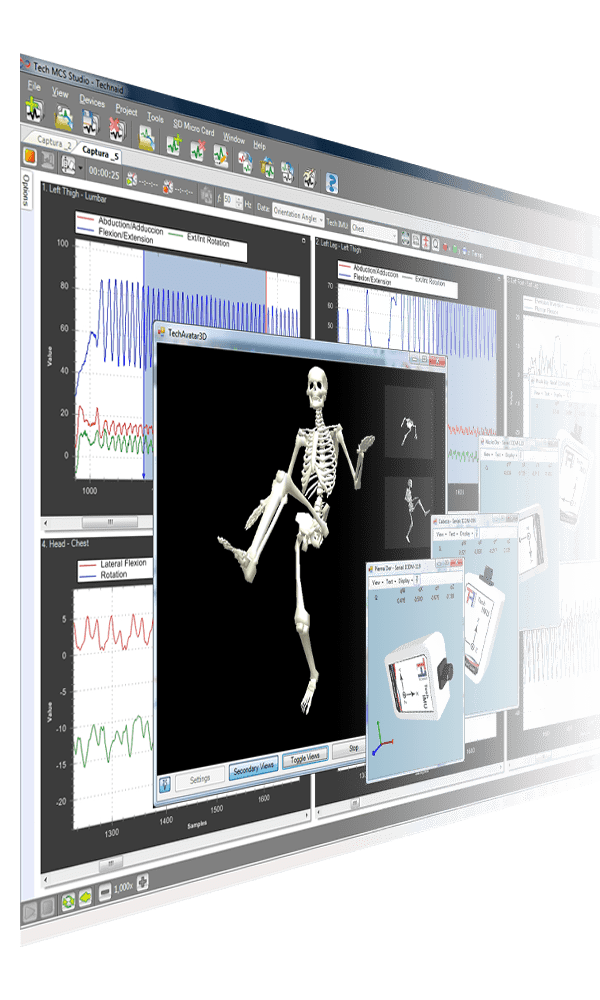

Tech MCS Studio 4 has been designed to provide the best user experience in each recording session. It is the software solution that pairs with the Tech-MCS package.

Its design makes daily work easier for specialists. Its project-orientation approach is particularly useful in clinical and research environments when as many as possible experiments need to be run in a single session.

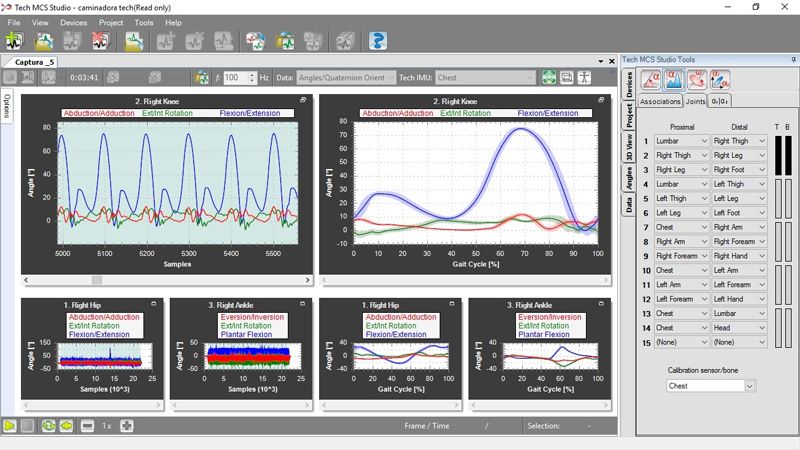

Tech MCS Studio 4’s main feature is customization: Up to 15 joints can be set up in the angle measurement mode, so the whole subject’s performance is recorded and visualized in real-time on the specialist’s computer.

There are several outputs for the data: graphically through a 3D avatar or 2D graphs, numerically on text files compatible with MATLAB, Excel, Autodesk, Blender or even with one-click biomechanical reports in a PDF file.

Biomechanical Analysis

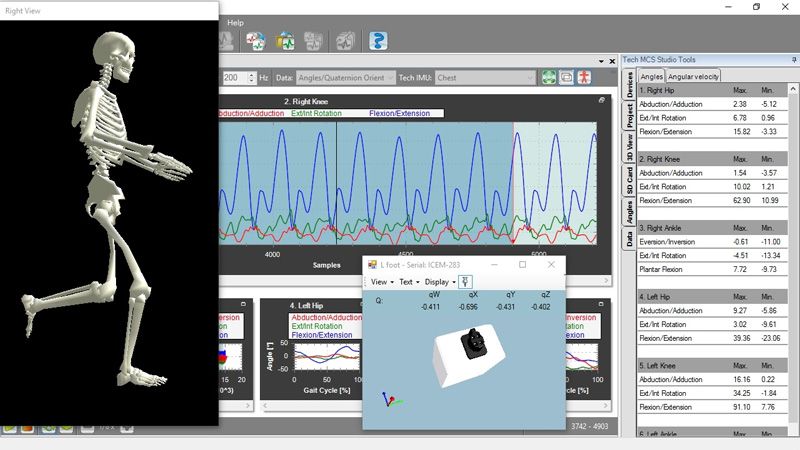

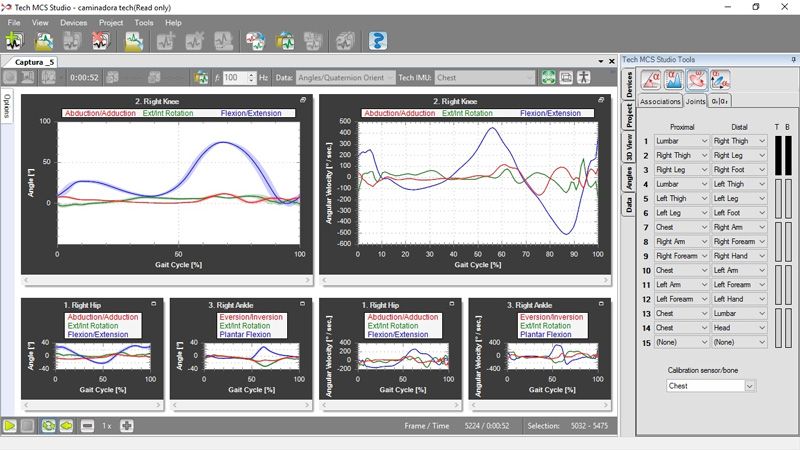

Tech MCS Studio 4 includes an innovative automatic step segmentation algorithm that improves gait/run statistics acquisition. Human biomechanical analysis is simplified with tools that deliver information as joint angular velocity or joint range in a fast way. Additionally, Tech MCS Studio generates one-click pdf reports that include all statistics and graphs.

Synchronization Options

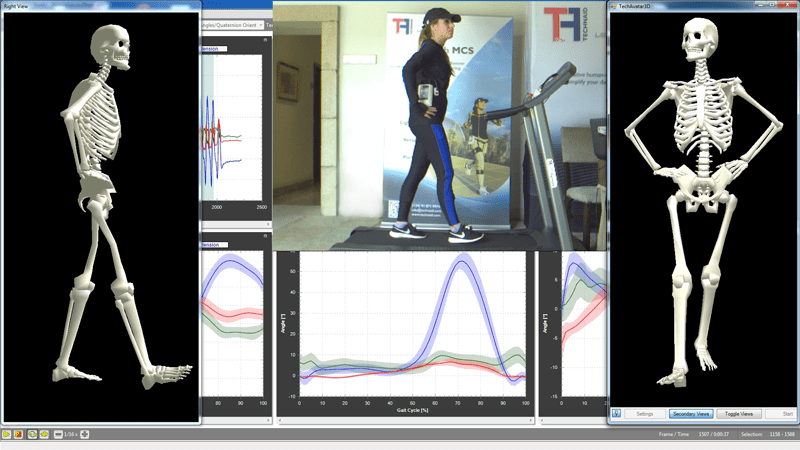

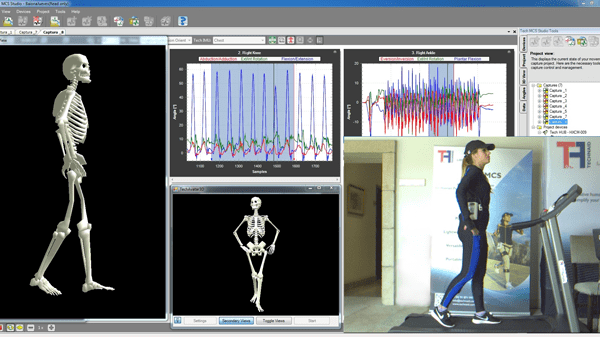

Tech MCS Studio 4 allows the synchronization between IMU data and video stream from compatible high speed cameras. Video is integrated in the software, helping users to detect when movement happens. Tech MCS Studio 4 provides different synchronized points of view from recorded movements to help specialists on their decision making.

When Tech MCS is configured as Master, synchronization with third parties’ hardware as EMG or EEG is managed through Tech MCS studio 4 as well. This provides total control over the experiment to the user with just one device.

Motion Capture Software Specifications

Visual Interface
  • Intuitive GUI (Graphical User Interface)
  • Real-time Data Visualization and Recording
  • 3D IMU and Avatar Visualization
  • Dynamic Visualization of Selected Data
  • Adaptable Work Area
Data Capture

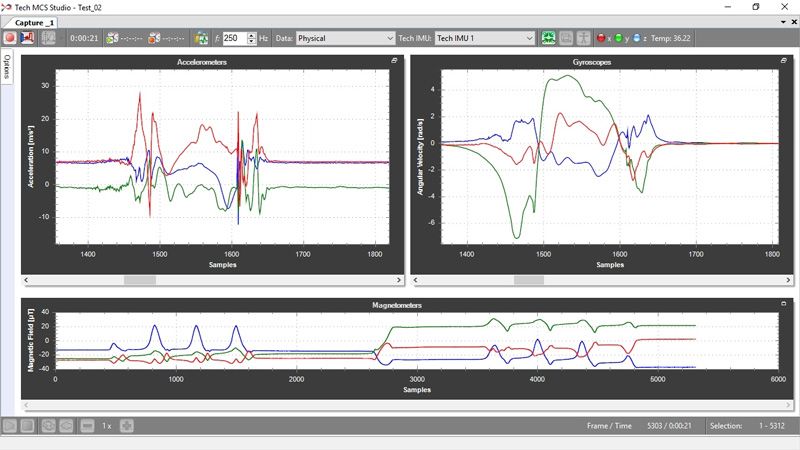

  • 3D RAW Data (Acceleration, Angular Velocity and Magnetic Field)
  • 3D Physical Data (Calibrated)

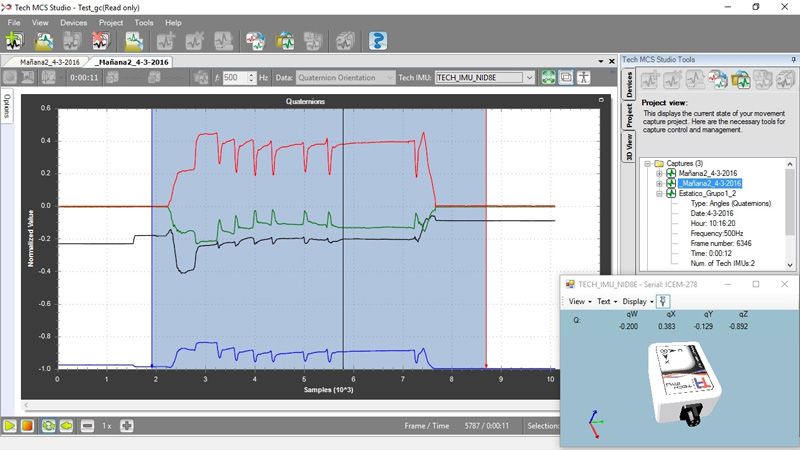

  • 3D Orientation in Quaternions

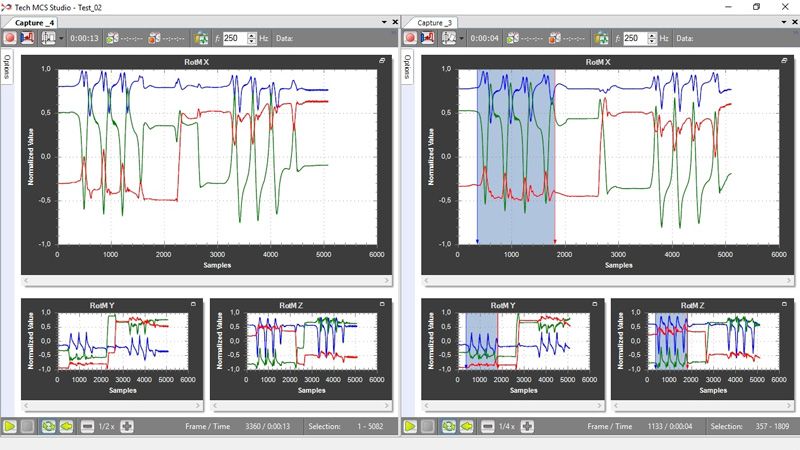

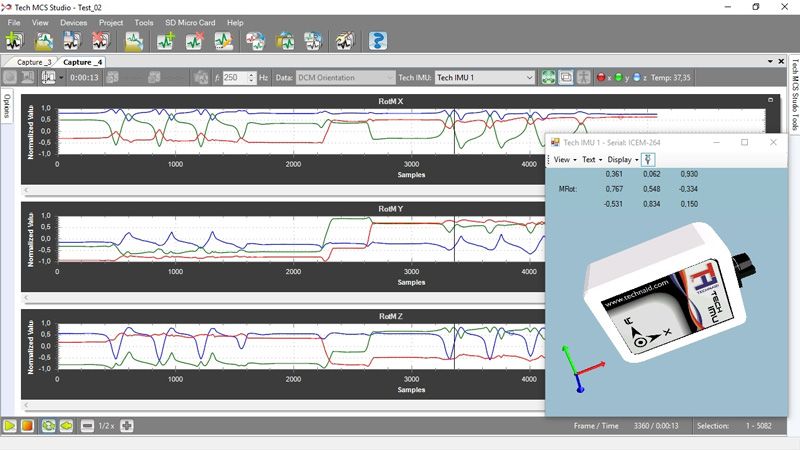

  • 3D Orientation in DCM (Direct Cosine Matrix)
  • 3D Angles Measurement (degrees)
  • 3D Angular Velocity
  • Rate Frequency up to 500 Hz
  • Tech IMUs Temperature Recording

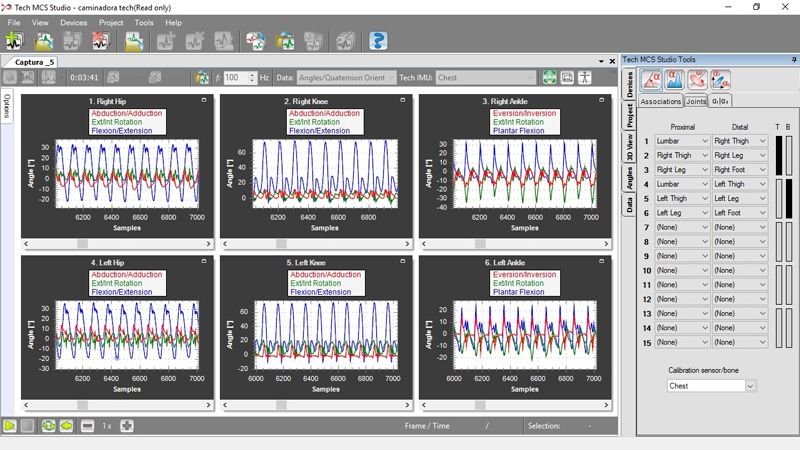

Angle Measurement Tools
  • Several Options to Set Up Measurement Session
  • Joints Selection, for Human Body’s Angles Measurement
  • Open Choice for Limb Relations (Real or Virtual Joints)
  • Graphical Relation Between Joint Angles
  • Automatic Gait Cycle Detection

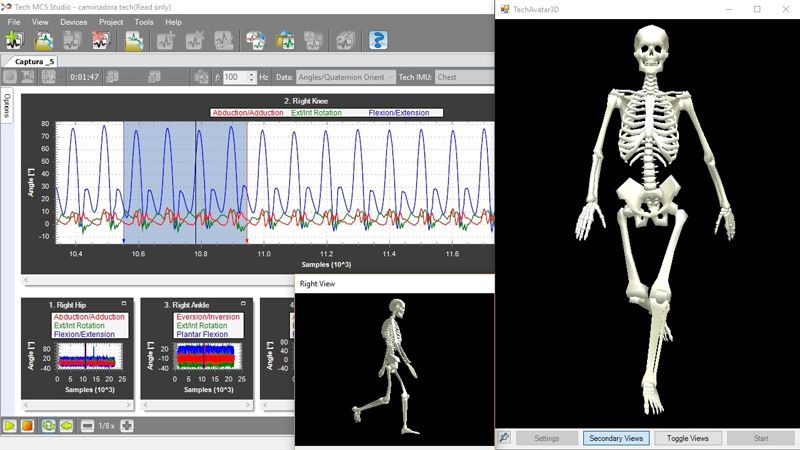

Playback Tools
  • Playback, Slow and Fast Motion
  • Time-Line Selection Playback, Playback Loop
  • Graphics’ Zoom IN/OUT.
  • Graphic Representation through 3D Avatars
  • Synchronized Video Frame Recording
Tech MCS Management
  • Projects and Template Manager
  • MicroSD Card Recording Manager
  • Possibility to Export Individual or Multiple Captures
  • Possibility to Import Captures to the Project
  • Possibility to Customize Labels of the Connected Tech IMUs
  • Quaternion/Angles Converter
  • In/Out Synchronized Trigger with External Devices
  • Capture Start/Stop Timer
  • Capture Management: Import, Rename, Eliminate, etc.
  • Automatic and Configurable Capture Name
  • Virtual IMU Alignment Through Software.
  • IMU Calibration Data Import/Export.
  • Exportable Memo Pad
  • Multiple Windows Simultaneously
Export Formats
  • Plain Text File (Excel or Matlab compatible)
  • 3D Formats: FBX, BVH
  • One-click Report Generator (PDF)
Applications
  • Research in Biomechanics
  • Gait Analysis
  • Sports Performance Research
  • Ergonomics
Others
  • Operating System Compatibility Windows 7, 8, 8.1 and 10 (64-bit)
  • Software’s Free Upgrades*
  • Specialized Technical Support
  • Available Libraries for Matlab, SDK for C #

Motion Capture Software Applications



With Tech MCS Studio 4 we made our software even smarter. It has been thoroughly designed to fulfill all applicable measurement requirements both engineering-wise and regarding human performance.

Engineers can now obtain data straight from the IMU sensor (RAW or calibrated) through the software interface and get the graphical and numerical information in real-time.

Physiotherapist and biomechanical specialists can get joint angle visual information through the 3D avatar, and also obtain statistics from the patient joint angle performance.

With this much power, Tech MCS Studio 4 keeps making your day to day job easier.
